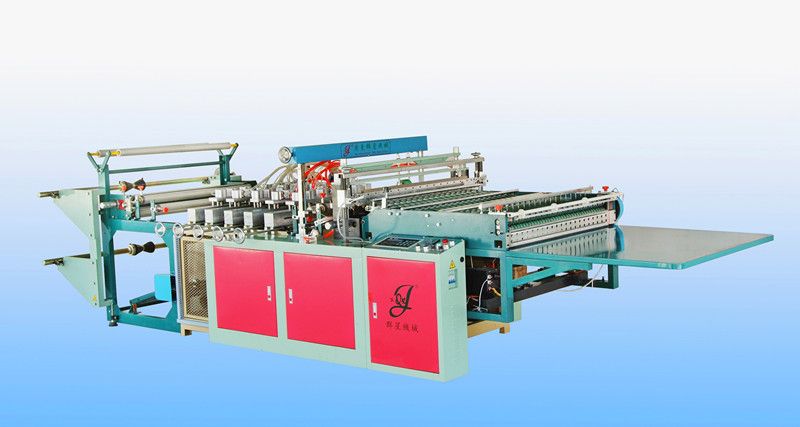

产品简介Introduction
本设备用于边封光膜；是生产服装斜挂袋、玩具袋、餐具袋、袜袋、折底袋、顶页袋、内外尺袋、信封口袋等高档薄膜袋不可缺少的理想设备。适用于PP、PE、PVC、OPP等材料。
本系列热切机采用微电脑控制，主机输送均采用变频调速、伺服电机定长送膜，自动控温，自动送料等先进配备，也可配套折膜机一次性完成。具有操作方便，封边牢固，平滑雅观，生产效率高等优点。
This equipment is an indispensable ideal equipment for high-grade film bag like inside page bag, socks bag, bottom-folding bag, top page bag, double-layer bag, envelop bag, etc.. It is suited for PP, PE, PVC, and OPP, etc..
This series of thermal cutting machine is controlled by microcomputer, Feeding by Servo Motor, Frequency Speed Control, auto. Temperature control, auto. Feeding, etc.. It excels in easy control, strong sealing, smoothness, good appearance, high producing efficiency, etc
技术参数Technical Parameter
| 型号 | Model | RQJ-1200 | ||
| 最大宽度 | Max. Width | 1200mm | ||
| 制袋长度 | Bag Length | 85-850mm | ||
| 薄膜厚度 | Film Thickness | 0.01-0.25mm | ||
| 制袋速度 | Speed | 60m/min | ||
| 整机功率 | Total Power | 6.8KW | ||
| 电 源 | Voltage | 380V AC 50Hz | ||
| 外形尺寸 | Size | 3.5×1.85×1.6m | ||
| 整机重量 | Weight | 1250KG |
Note: The above parameters are for reference only, if there are any changes without prior notice.
